Information

• Manufacturer: Honeywell
• Product: N/A (connects to ProWatch database)
• Type: Access Control / Alarm Receiver

Supported Features

• Output Control
• Get Config
• Sync

Setup

1. Install the SureView Honeywell ProWatch DB Receiver service
2. Edit the config file and provide the settings described in the Settings section below then restart the service, in particular:
   1. The connection strings to each of your ProWatch databases.
   2. Command ports for each connection.

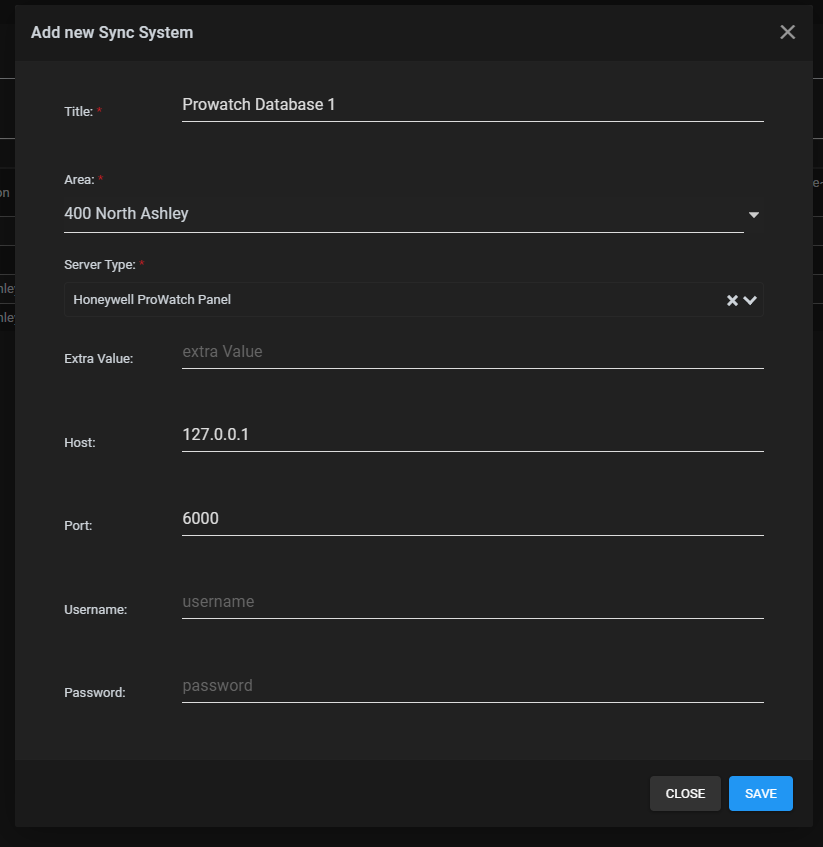

3. If you plan on using site sync then for each ProWatch database, create a Sync System entry providing the following values:

Field	Value
Type	Honeywell ProWatch Panel
Host	The IP of the Sureview server running the Receiver service (use "127.0.0.1" if you only have one server so the Sync service and Receiver service are on the same server)
Port	The command port you entered in the config for this particular ProWatch connection.
Username	N\A
Password	N\A
Extra Value	N\A

Receiver Settings

The following settings exist in the SVHoneywellProWatchDBReceiver.exe.config file which control its behaviour (remember to restart the service after making any changes):

Setting	Description	Recommended Production Value
ProWatchDatabases	List of SQL connection strings for the ProWatch database to connect to separated by pipes	Value specific to your deployment
CommandPorts	List of command ports, one for each connection string in the above setting separated by pipes	Value specific to your deployment
EventInterval	How often to query the ProWatch database for new events	2000 (2 seconds)
IgnoreUnmatchedPanelAlarms	Whether to raise events for panels that don’t exist in Sureview	true (ignore unmatched)
AcknowledgePanelAlarms	Whether to remove alarms from ProWatch after raising them to Sureview	true (remove raised alarms from ProWatch)
IgnoreSystemEvents	Whether to ignore non-panel events and not raise them to Sureview(they will be raised into the System Queue)	false (raise system events to Sureview)
ServerIDForSystemEvents	If you want non-panel events to go into a particular site instead of the System Queue then set this to the server’s S#	Value specific to your deployment
CommandTimeout	Timeout for SQL commands in seconds	30
EventLogIndexName	Name of index on the EV_LOG table (containing the REC_DAT column only) to use for event queries	Same name as index in SQL i.e. "EV_LOG_IMMIX"



Sureview Configuration

There are two different ways of adding ProWatch devices into Sureview

Site Sync

To add a ProWatch site to Sureview:

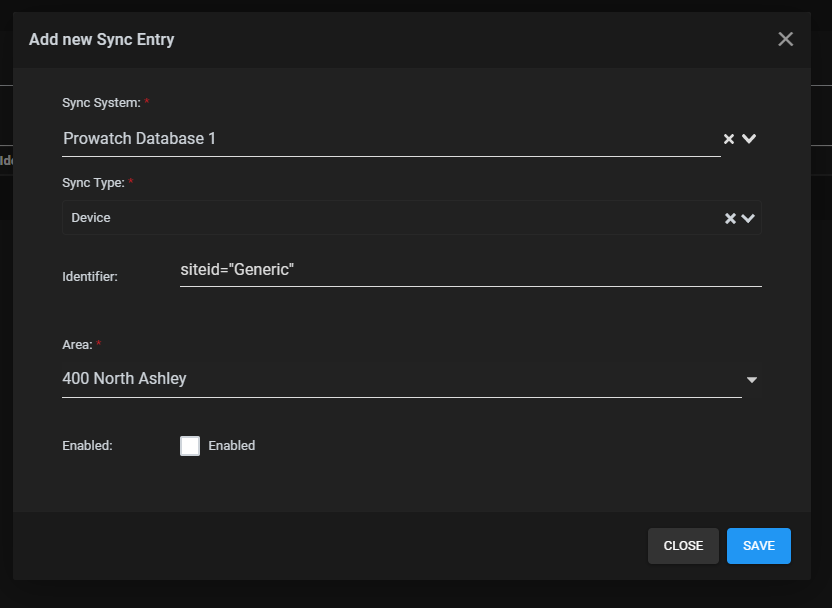

1. Create a Site Sync Entry for your site providing:


   Field	Value
   System	The Sync System you created above for your particular ProWatch system
   Identifier	The filtering options for the site,panel, and devices to be added (Look at Sync Filtering options for more details)

2. The sync will import all of the panels from the ProWatch site and events from those panels will be raised into the site.

Get Config

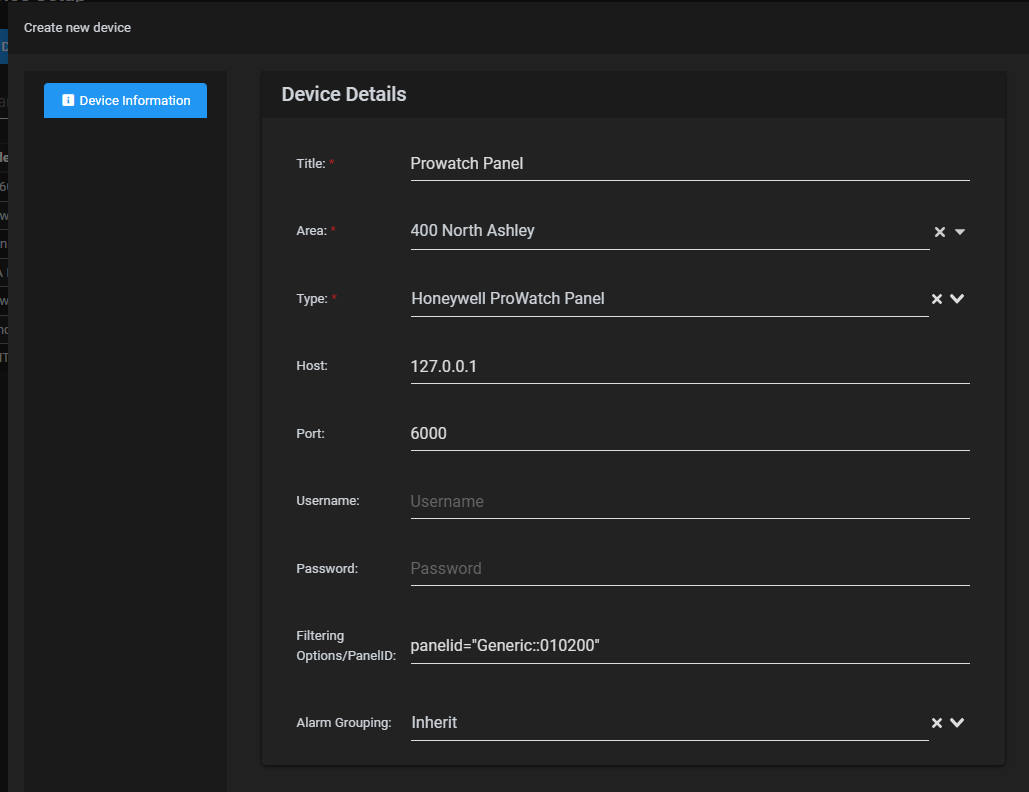

To add a single panel into Sureview:

1. Add a new device to your site providing:


   Field	Value
   Type	The Sync System you created above for your particular ProWatch system
   Host	The filtering options for the site,panel, and devices to be added (Look at Sync Filtering options for more details)
   Port	The command port you entered in the config for this particular ProWatch connection.
   Extra value	The filtering options for the panel and devices to add (Look at Sync Filtering options for more details). After Get config is completed the Extra value will change to show the PanelID of the panel being imported

2. Get Config will import all of the devices from the specified panel and all of the related events will be raised into the site.



Input Identifiers

The Input1 number for alarms and relays is the end part of the unique HardwareID of the particular ProWatch item after the PanelID.

For example, a door with the HardwareID of "Generic::05020105011003" on the PanelID "Generic::050201" will have the input number of 5011003 in Sureview ("Generic::05020105011003" minus "Generic::050201" from the start leaving "05011003" then drop the leading zero)



Sync filtering options

The Honeywell ProWatch Database Integration has the following filtering options available for Sync and Get config. Multiple filters can be used together.

Site Id

This will get all panels for the specified site
For example an identifer\Extra Value of Generic
Will sync for all panels, relays, and alarms with the site "Generic"

However, if any additional filters are being used then the site id must be specified in the following format siteid="Generic"

Panel Id

Instead of using a SiteID it is possible to get just a specified Panel
For example : panelid="Generic::010200"

Panel Filter

It is also possible to apply wildcard filtering for a panel's Description by specifying a contains, starts with, or ends with filter.

Contains filter

For example an identifer\Extra Value of panelfilter="*Panel 1*"
Will get all panels that contain a description of Panel 1

Starts With filter

For example : panelfilter="Panel*"
Will get all panels that start with Panel

Ends With filter

For example : panelfilter="*1"
Will get all panels that end with 1

Regex filter

When using a Regex Filter the pattern MUST start with ^ or it will fall back to the wildcard method.

For example : panelfilter="^Panel (1|2)"
Will get all panels with the description of Panel 1 or Panel 2

Door Filter

It is also possible to apply wildcard filtering for a Logical Device's Description by specifying a contains, starts with, or ends with filter.

Contains filter

For example an identifer\Extra Value of doorfilter ="*Entrance 1*"
Will get all the panels that contain the relays and alarms that use a Logical Device with a Description that contains Entrance 1

Starts With filter

For example : doorfilter="Entrance*"
Will get all the panels that contain the relays and alarms that use a Logical Device with a Description that starts with Entrance

Ends With filter

For example : doorfilter="*1"
Will get all the panels that contain the relays and alarms that use a Logical Device with a Description that ends with 1

Regex filter

When using a Regex Filter the pattern MUST start with ^ or it will fall back to the wildcard method.

For example : doorfilter="^Entrance (1|2)"
Will get all Logical Devices with the description of Entrance 1 or Entrance 2



Processes

Note all processes below require the IgnoreUnmatchedPanelAlarms setting to be enabled so that only ProWatch events that match a panel in Sureview are raised in Sureview.

Alarm Acknowledgements in ProWatch

The Sureview service can be set to acknowledge alarms that it receives and matches to an Sureview site so they are cleared from the ProWatch software. This removes the row in the UNACK_AL table and only occurs if the alarm matches a device (panel) in Sureview - any panels that are not in Sureview will not have their alarms acknowledged inside ProWatch (i.e. you can bring a few sites at a time over into Sureview, and only alarms from those sites will be removed from ProWatch).

NOTE: Due to a limitation of the ProWatch software, alarms that are cleared by Sureview will not be removed from already running ProWatch Alarm Monitor clients if the user has the site in their routing group, so the alarms will still show in the ProWatch software to those users.

To overcome this, when a site is live in Sureview you must:

1. Modify the ProWatch user alarm routing rules so that no ProWatch users see alarms from this site.
2. Clear out any existing alarms so there are no alarms left in ProWatch for the site.

Note: all the events in ProWatch will still be shown in the Event Log window of the ProWatch software so you can still watch all events being received regardless of Sureview clearing those that match sites it has from the alarm queue.

Adding a new site

1. Add the site and its Panels in ProWatch and perform all of your alarm tests in ProWatch
2. When the testing is complete, add the Sync Entry to the Sureview site which will cause the Panels to be imported and events to start being received.
3. Follow the steps in the "Alarm Clearing in ProWatch" above to stop alarms from being shown to ProWatch users

Adding a new panel to an existing site

1. Disable the sync entry in the Sureview site so panels are no longer imported for that site
2. Add the panel to ProWatch and perform all of your alarm tests in ProWatch
3. When the testing is complete, re-enable the Sync Entry in Sureview which will cause the new panel to be imported and events to start being received.
4. Follow the steps in the "Alarm Clearing in ProWatch" above to stop alarms from being shown to ProWatch users

Adding a new reader to an existing site

As the panel already exists in Sureview it will mean the test events are raised into Sureview and any alarms cleared out of the ProWatch alarm queue automatically.

In order to test the alarms for the new reader you will need to either set the site On Test in Sureview for the duration of the test period or disarm the alarm points in Sureview for the duration of the test period so the test events do not interfere with operators (note you can still watch the ProWatch Event Log to see the events coming in from the new reader regardless of any alarms being cleared as described in "Alarm Clearing in ProWatch" above).

Troubleshooting

Door Control Does Not Work

If your ProWatch server is 64-bit ensure that you have completed the steps explained in Honeywell's "64 bit Pro-Watch Servers" guide (attached to this page), including:

• Installing Microsoft's Visual C++ 2005 Runtime
• Installing Microsoft's "SQL 2005 Backwards Compatibility Pack"
• Adding the "CommServerName" registry entry to "HKLM\Software\Honeywell\ProWatch\Directories"
• Editing the C:\Program Files (x86)\ProWatch\Scripts\MICXP.sql file to point at the MICXP64.dll file instead of the MICXP.dll file and then running it against the ProWatch database.

Port 6000 in use by "system"

If you are attempting to start the HoneywellProwatchDBReceiver service and it starts and stops there are likely two causes:

• If you used the ProwatchDBTest.exe to test the connection to the ProWatch DB.
  In task manager:

  • Make sure the application for dbtest tool is closed.
  • Make sure the process is also closed.

Delays in getting alarms

• Run the attached 'ProwatchCreateIndex.sql' script on the Prowatch database (Client DB admin may need to approve as this is not a SureView database).
• Add the appropriate 'EventLogIndexName' entry into the SVHoneywellProWatchDBReceiver.exe.config file to utilize the index.
