Information

Manufacturer: March Networks
Product: March Command
Type: VMS

Supported Features

Video
- Live
- Recorded
Get Config
Sync

Components and Communication

From

Port

Use

Sureview Server

March Command Recording Server

80 /443 TCP

Connecting to March Command for Device configuration, live and recorded video.

SDK Version: 2.10

Device Version: 2.7

Sureview Configuration

Configuration in Sureview

The following steps are required to configure this integration in the SureView interface.

Before you begin

Before you configure Sureview to work with March Command make sure you have the following:

Open ports on your Sureview server
Username and password of a March Command user account
- Must have permission to access camera information and view live and recorded video

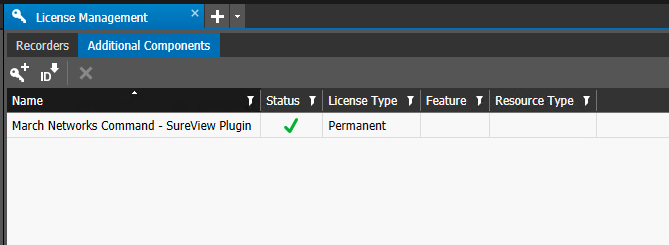

The SureView Plugin license must be applied to all March Command recording servers

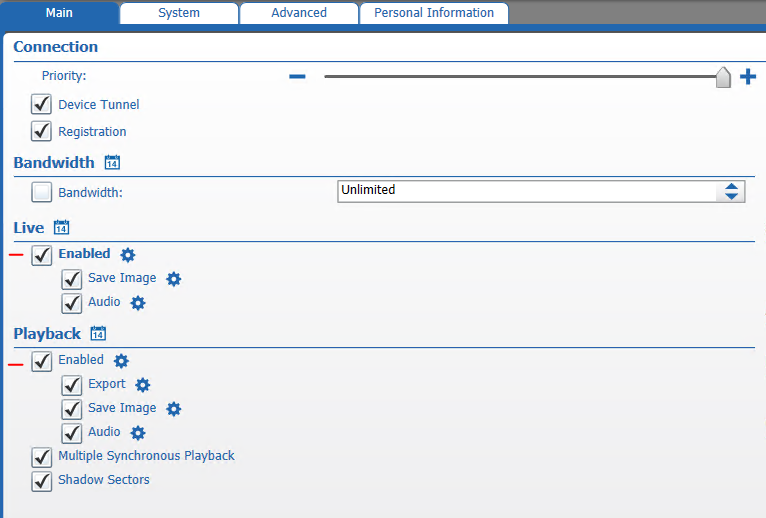

The SureView user account must have all the required permissions for live and recorded video:

Control Configuration

The information below is required to add March Command VMS to SureView :

Field	Value
Host	Host used to connect to March Command web API.
Port	Port used to connect to March Command web API. Default: 443
Username	Username of the March Command user account. This is typically the users email address.
Password	Password of the March Command user account.
ExtraValue	If the SDK connection should use https or https. Default: Https SecureHTTP=True/False

Add a new device within the Sureview interface. Select "March Command" from the dropdown list and enter the Host address of your March Command Recording server, the port value of 443, and the username and password of your March Command account.

Config File Keys to add

The following keys need to be added to the <appSettings> section of the DeviceWorker.exe.config file.

 <!-- MARCH APP ID for Server -->
<add key="MarchCommand_AppId" value="31d99fc3-1ff9-493d-a07d-7c11bc2ddbb9" />
<!-- Signature For Server-->
<add key="MarchCommand_Signature" value="hpq8Nx5Vbq29ShALRivwhD6JOdA0QPqwkO0yCFXCjiNeGss+BrDdZNpHAXUX0+rS8e77LlhmWQlMhrw2hXhHFUxxbQM3q/rYBUS2mF1i6JoI0RLP381Z27O/hLRr0LSyc3y5gWzJZ/OyMmszEi0WQWzqiKpklEnA1GPmCIf4PLtfpPpysMF4bsFaykOWIzON5SO4VfjZhxiETHQ5iKrVgUD0+ZySa3hONHBHoQ1fwq23j3PbfNoA7bES1aYwNrVeXeViqB/eHEMsfBPKFlExO29kPzmV4JGxVvllj3hlqXVuOu9UUkIAtVKTN3Ep0Blpo11oHcfYpUhqKaYL+D7eIA==" />
<!-- SiteMode for the version we are connecting to Server = Enterprise, Recorder = Professional-->
<add key="MarchCommand_SiteMode" value="Server" />

If you will be using sync then you will also need to add the keys to the <appSettings> section of the SyncClient.exe.config

Camera Filters for GetConfig and Sync

If the cameras have a logical naming convention, Filters can be used to limit the cameras brought into Sureview with GetConfig or sync.

Filters

Filters are added to the ExtraValue in the device setup

Examples:

SecureHTTP=True;cameraFilter=Cam*; // wild card on end
SecureHTTP=True;cameraFilter=*Cam*; // wild card any where
SecureHTTP=True;cameraFilter=*Cam; // wild card at start
SecureHTTP=True;cameraFilter=Camera 1234; // exact match

Regex Pattern:

For more advanced filters a Regular Expression can be used.
This allows complete flexibility on filtering.
When using a Regex Filter the pattern MUST start with ^ or it will fall back to the wildcard method.

Troubleshooting

Worker Fails to Start

If the worker fails to start with an error concerning failure to establish an RPC connection, then ensure that the Device Service is running as a real user account. Running as local system is not supported for March Command.
