MiraSys – SureView Systems

Features

Integration	Features	SDK	Model/Firmware Tested	Available in System Updates
Mirasys	- Live Video - Quality Changing - Multiview - Relays - Alarms (SMTP) - Post Alarm Recording	5.11.4.144	FW 5.11.5	Y

Integration	Features	SDK	Model/Firmware Tested
Mirasys	- Live Video - Web Video - MultiView - PTZ Control - Preset Control - Relay Control - Alarms (SMTP) - Post Alarm Recording	5.11.4.144	FW 5.11.5

There are no prerequisites required for this integration.

Host	The external IP address of the device
Port	The Video port for the device
User	The username to access the web interface
Password	The password to access the web interface

Open the MiraSys System Manager software.

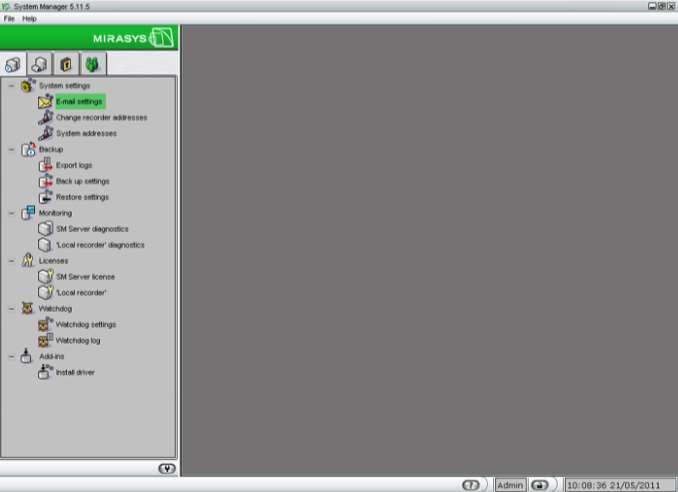

Double click the 'Email Settings' option.

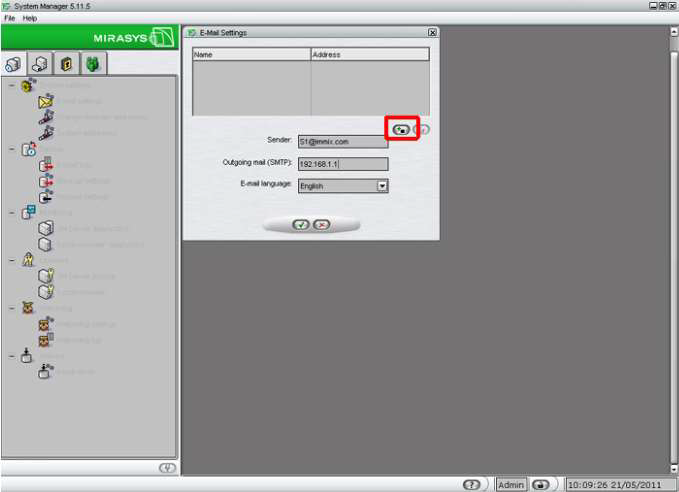

Enter the 'S' number email address (given in the Immix Setup Report) and SMTP server address, then click the 'Add' button

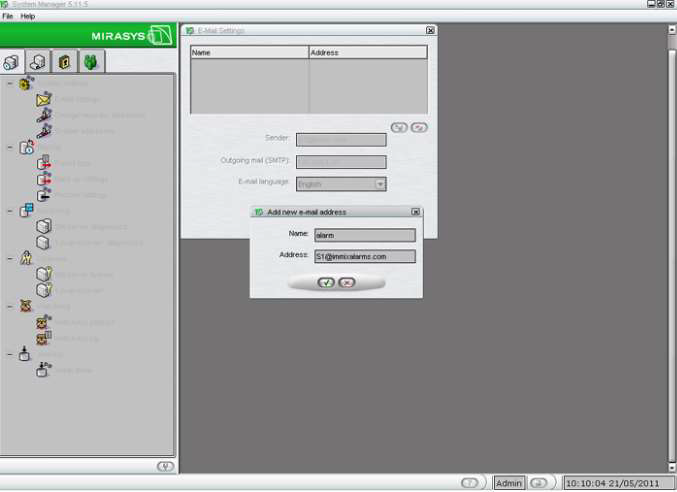

Enter a name and the 'S' number email address then click the 'Tick' button

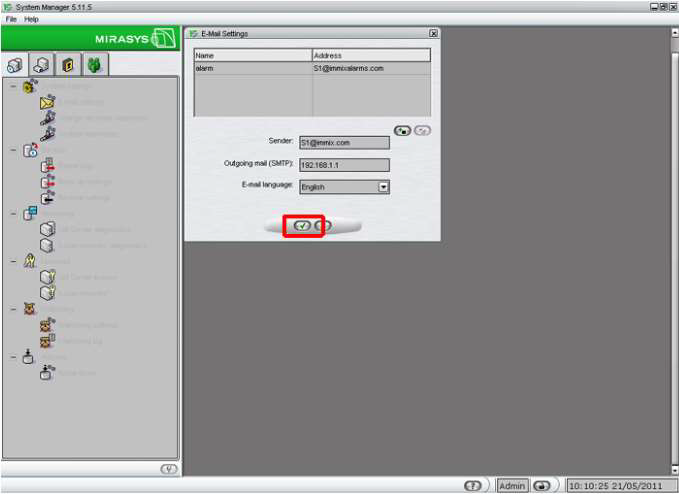

Click the 'Tick' button to save.

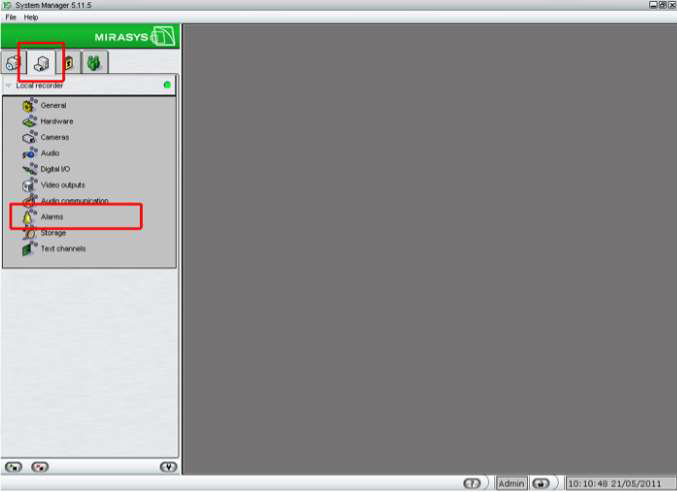

Click the 'Local Recorder' tab at the top, then double-click the 'Alarms' option.

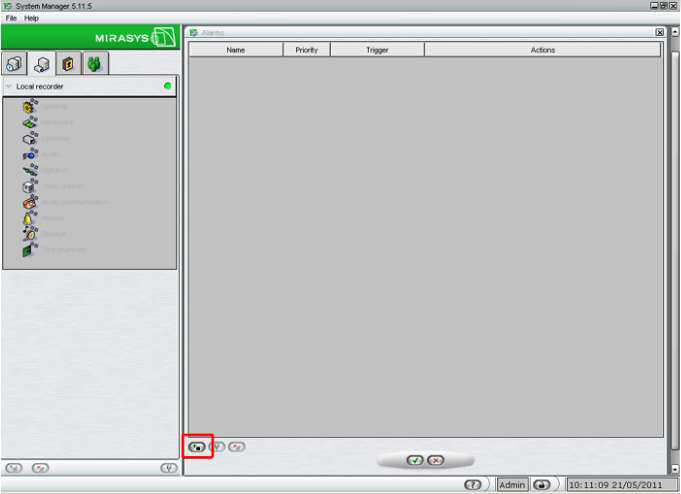

Click the 'Add Alarm' button.
In the 'Name' field ensure that the alarm input number is included in the text.

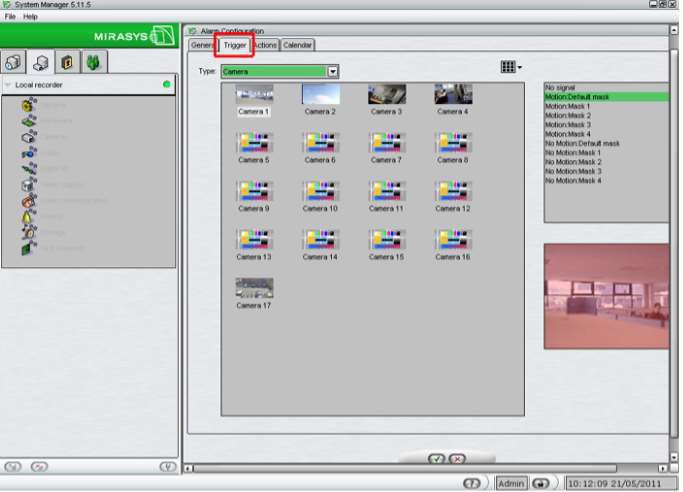

Configure the alarm's trigger.

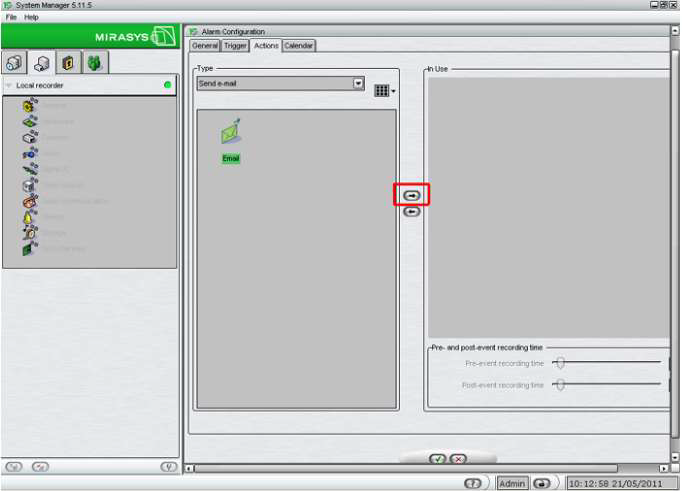

Under 'Actions' select the 'Send Email' option.Then click the arrow pointing right to add it.

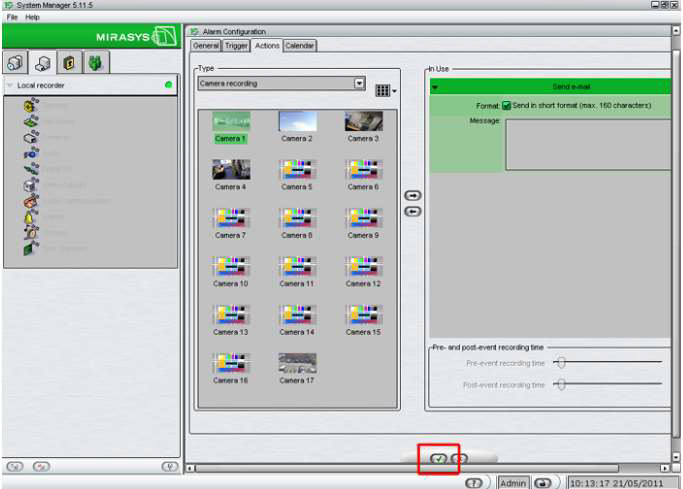

Click the 'Tick' to save.
Repeat this for all alarms and once finished, click the 'Tick' to save.
